Our fiberglass sheets are laminated by fiberglass prepreg, pressed and cured by compression machines and autoclave machines. With high strength to weight ratio, corrosion resistance and insulation characteristics.
Surface: Matte/Glossy
Material: Fiberglass Prepreg
Color: White/Black/Colored
CNC Cutting Service: Possible
Layup Design: 0/90degree, +/-45Degree Possible
Production Method: Mold Compression or Autoclave machine
Your #1 Fiberglass Sheets 4x8 Manufacturer!

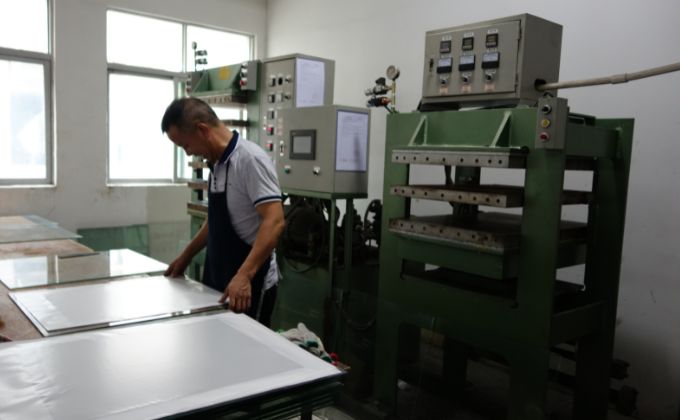

Solid fiberglass sheets are laminated by reinforced high strength fiberglass prepreg and epoxy resin. Fiberglass sheets are mold compressed at high temperature and pressure to ensure a strong, rigid panel that can not be deformed after cured. Mold compressed sheets are consistently yield flat in a higher strength with no waves and pores after pressed by a 25MT or up to 100MT machine.
You DESIGN it, We will MAKE it!
Fiber for options: Carbon fiber, Fiberglass, Kevlar®, Basalt;
Thickness: From 0.5mm
Layup: 0/90degree, +/-45 possible
Surface Finish: Matte/Glossy/Clear Coat
Logo: Silk screen/UV printing
Sizes up to: 2000x3000mm
Technical Data Sheet
Tensile Strength, Lengthwise: 40,000 psi
Tensile Strength, Crosswise: 35,000 psi
Compressive Strength, Flatwise: 60,000 psi
Compressive Strength, Edgewise: 35,000 psi
Flexural Strength, Lengthwise: 55,000 psi
Flexural Strength, Crosswise: 45,000 psi
Modulus of Elasticity in Flex, Lengthwise: 2.7 psi x 106
Modulus of Elasticity in Flex, Crosswise: 2.2 psi x 106
Shear Strength: 19,000 psi

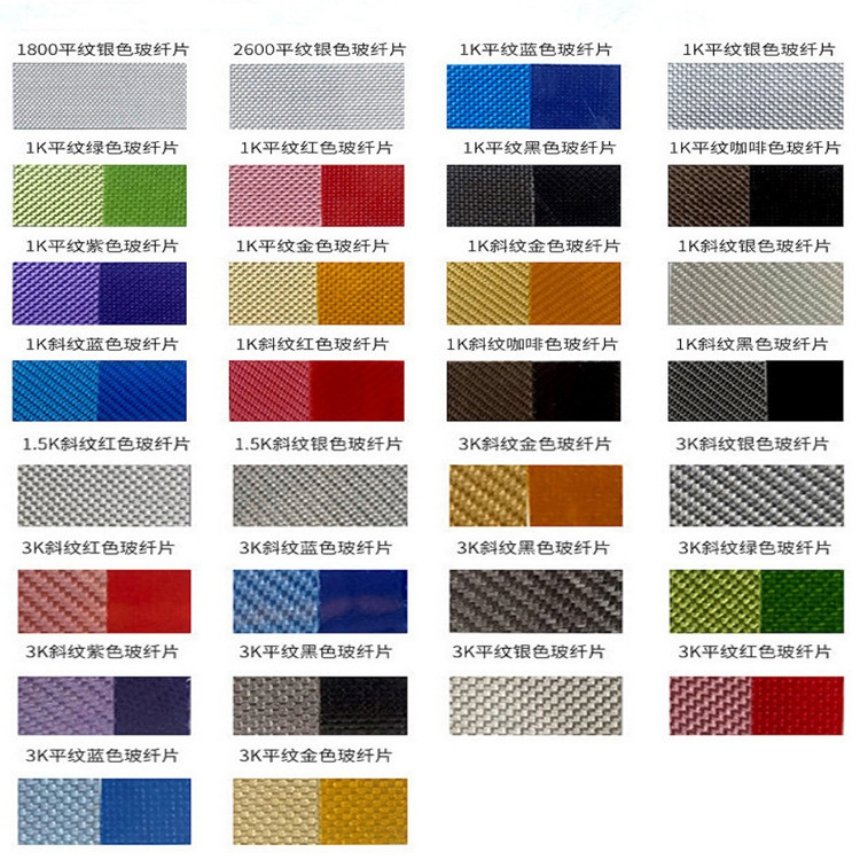

Some of Fiberglass Sheet Color Options
Fiberglass can be painted for red, blue, yellow and gold, here are the color patterns for your option, just let us have the color code or shot screen to send the best quotation to you.
