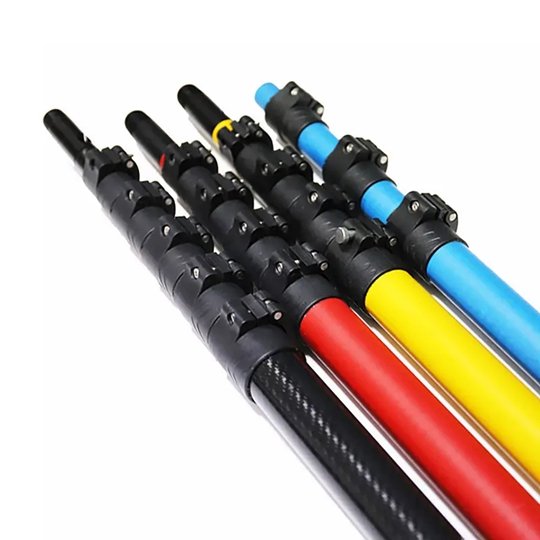

30 ft Telescopic Pole Carbon Fiber

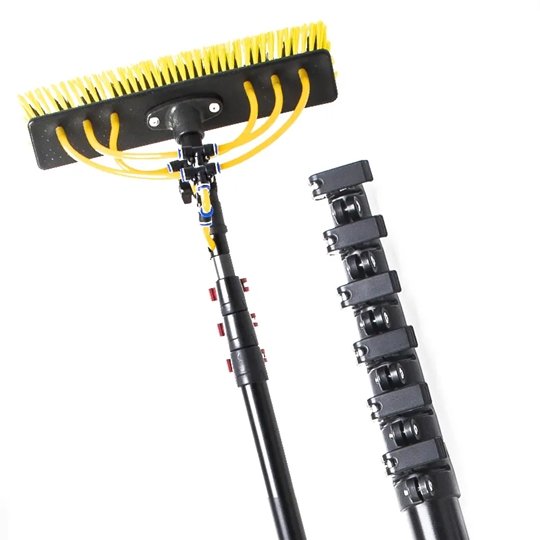

Made of 100% full carbon fiber tubes and nylon clamps, the 30 feet carbon fiber pole is ideal and popular for difference types of window cleaning.
-Extended Length: 30 feet
-Collapsed Length: 1.7 meters
-Big Tube Outer Diameter (OD): 43mm
-Wall Thickness (WT): 1.2mm
-Sections: 7
-Shape/Profile: Round
-Color: 3K pattern or UD Black
-Resin Type: Epoxy
-Finish: Gloss/Matt/UD
-Surface Treatment: Polished/Clear Coat
Your #1 Carbon Fiber Telescopic Pole Manufacturer!
Future Composites’ carbon fiber telescopic poles are made from 100% high-quality carbon fiber prepreg, manufactured using advanced winding technology and subjected to precision high-temperature curing. This ensures precise tube dimensions and consistent quality. A reinforced composite clamp prevents the pole from wobbling even after reaching its full length.
The 40-foot carbon fiber telescopic pole is corrosion-resistant and easy to grip, making it the most popular size for indoor cleaning applications.
Due to the higher material and labor costs, carbon fiber telescopic poles are more expensive than traditional stainless steel and aluminum alloy telescopic poles. However, their light weight, corrosion resistance, and low maintenance make them an ideal choice for long-pole applications.
Carbon Fiber Telesopic Tubes Specification
We maintain more than 500pcs of mandrels with difference sizes and clamps of telescoping pole. For a size and sections not listed, you can choose from our existing design or made-to-your-order. Mail us now to check the availability and cost of your design. Start from a small order quantity is possible.
| Extension Length | Thickness (mm) |
Small OD (mm) |
Sections | Contraction Length |
||
| 6 meters | 1.2 | 22 | 5 | 1.5 meters |  |
|
| 7 meters | 1.2 | 22 | 6 | 1.6 meters | ||
| 8 meters | 1.2 | 22 | 6 | 1.6 meters | ||
| 10 meters | 1.2 | 22 | 7 | 1.7 meters | ||
| 12 meters | 1.2 | 22 | 8 | 1.8 meters | ||
| 15 meters | 1.2 | 22 | 10 | 1.85 meters | ||
| 18 meters | 1.2 | 22 | 11 | 2.1 meters | ||
| 20 meters | 1.2 | 22 | 11 | 2.25 meters | ||
| 22 meters | 1.2 | 22 | 13 | 2.1 meters | ||
| 27 meters | 1.2 | 22 | 16 | 2.2 meters | ||
| Remarks:For this kind of clip, the max length is 27meters, 28 meters is also possible by changing the length. | ||||||
| Extension Length | Thickness (mm) |
Small OD (mm) |
Sections | Contraction Length |
||
| 6 meters | 1 | 19 | 5 | 1.5 meters |  |
|
| 7 meters | 1 | 19 | 6 | 1.6 meters | ||
| 8 meters | 1 | 19 | 6 | 1.6 meters | ||
| 10 meters | 1 | 19 | 7 | 1.7 meters | ||
| 12 meters | 1 | 19 | 8 | 1.8 meters | ||
| 15 meters | 1 | 19 | 10 | 1.85 meters | ||
| 18 meters | 1 | 19 | 11 | 2.1 meters | ||
| 20 meters | 1 | 19 | 11 | 2.25 meters | ||
Application of Carbon Fiber telescopic pole
| Cleaning | Pruning | Fumigation |
| Filming (image and sound) | Advertising | Probes |
