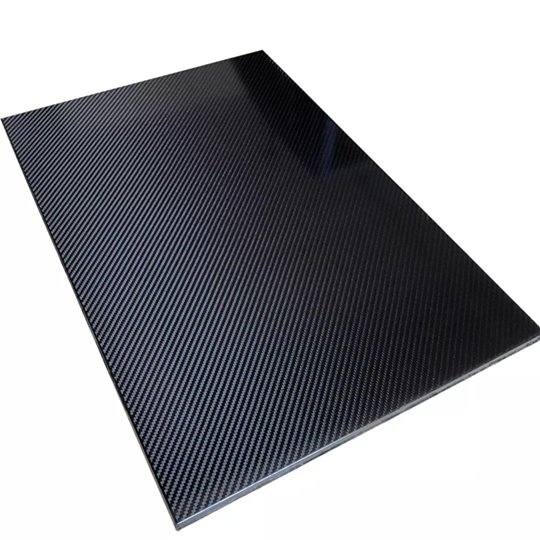

3K Carbon Fiber Sheet
If there are no special requirements, the carbon fiber sheets will be produced by 3K+UD prepreg by drawings, we provide you the silk screen printing, clear coat painting, and CNC cutting services.

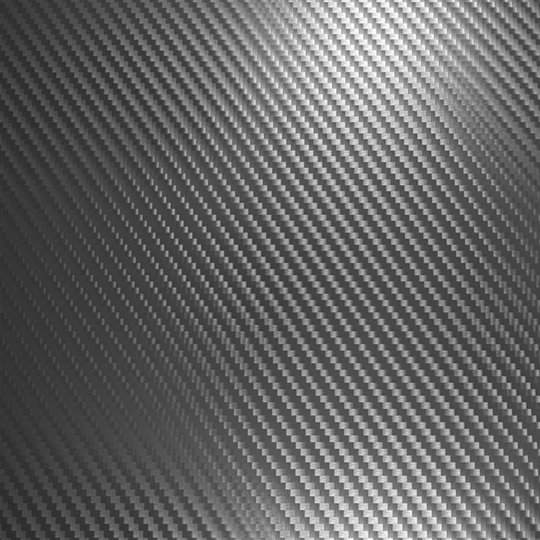

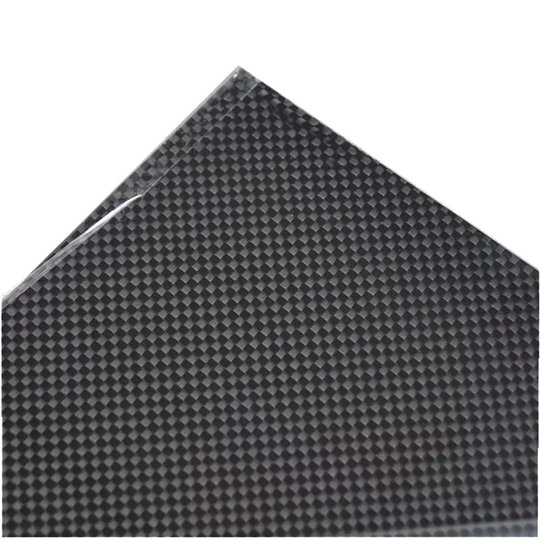

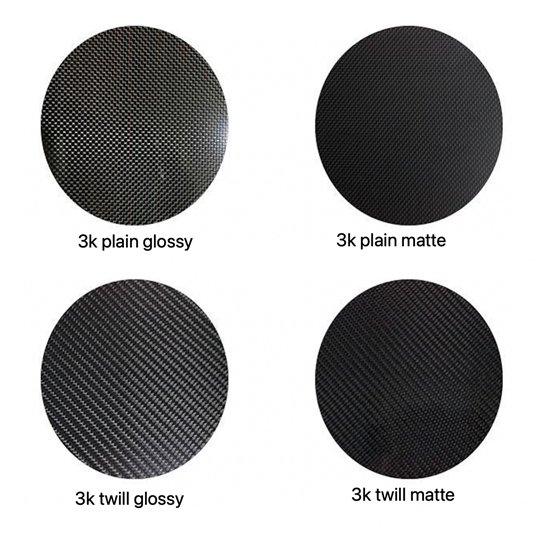

-Surface: 3K twill/plain in glossy/matte
-Inner structure: unidirectional prepreg in 0/90 layup
-Fiber type: T300/T700/T800/M30/M40
-Tensile Strength: 3530MPa for T300
-Tensile Modulus: 230GPa
-Elongation: 1.5%
-Density: 1.6-1.9 g/cm3
-Standard Size: 500x500mm, 1000x1000mm

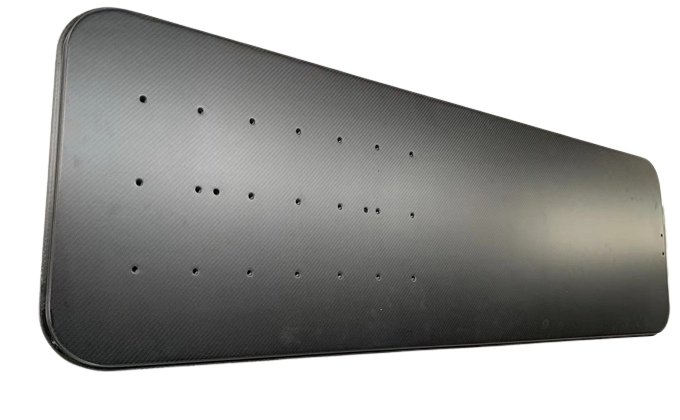

Product Features
-Light weight, high tensile strength and modulus
-Anti-aging and corrosion resistance
-Very low coefficient of thermal expansion and dimensionally stable
Your #1 3K Carbon Fiber Sheet Manufacturer
We mainly produce T300 model, 3k appearance, carbon fiber plates produced by adding UD prepreg in the middle, and can also provide customized services according to customer requirements, and can provide silk screen printing, spray painting, CNC cutting services. If you pursue cost-effectiveness, we can provide domestic high-quality 3K prepreg for appearance, which has been well received by many foreign customers and received return orders; if you have higher requirements for the texture, we can provide Toray, Mitsubishi, and Taili prepreg production, the texture is clearer and smoother, the price will be higher, and we can also provide two prices for you to choose.
Applications of 3K Carbon Fiber Sheet
Application areas: car decoration, furniture decoration, RC drones, HiFi recorder, dash board, industrial accessories and so on.
-

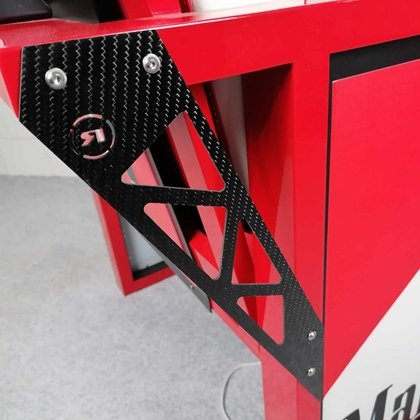

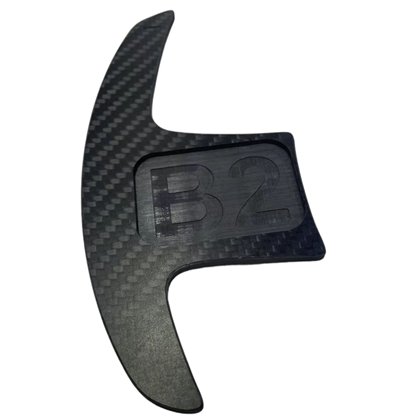

Car decoration -
Furniture decoration -

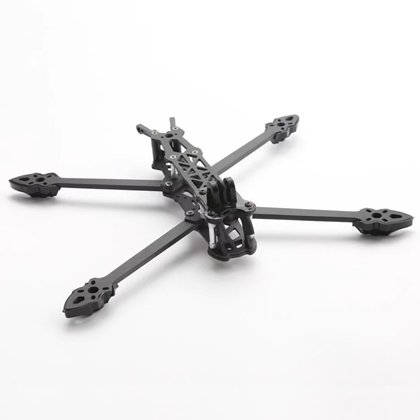

RC drones -

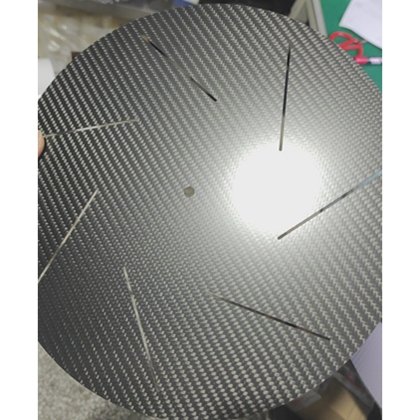

HiFi recorder
Standard size
All carbon fiber panels are custom-made. The following are regular sizes. Some thicknesses are in stock. If you need samples, we can ship them within 48 hours. Widths exceeding 1.2 meters will have splicing patterns. We are willing to provide photos and samples for your reference. Please contact us by email.
| 300*200*1 | 400*500*1 | 500*700*1 | 600*700*2 | 700*600*2 |
| 300*200*2 | 400*500*2 | 500*700*2 | 600*700*3 | 700*600*3 |
| 300*300*3 | 400*500*3 | 500*700*3 | 600*700*4 | 700*600*4 |
| 300*400*1 | 400*500*4 | 500*700*4 | 700*400*1 | 800*400*1 |
| 300*400*2 | 500*500*1 | 500*700*5 | 700*400*2 | 800*400*2 |
| 300*400*3 | 500*500*2 | 600*400*2 | 700*400*3 | 800*400*3 |
| 400*400*1 | 500*500*3 | 600*400*3 | 700*400*4 | 800*400*4 |
| 400*400*2 | 500*500*4 | 600*400*4 | 700*500*1 | 800*500*1 |
| 400*400*3 | 500*600*1 | 600*400*5 | 700*500*2 | 800*500*2 |
| 400*400*4 | 500*600*2 | 600*500*2 | 700*500*3 | 800*500*3 |
| 400*400*5 | 500*600*3 | 600*500*3 | 700*500*4 | 900*400*1 |
| 400*400*6 | 500*600*4 | 600*500*4 | 700*500*5 | 1000*1000*2 |
| 400*400*7 | 500*600*5 | 600*500*5 | 700*600*1 | 1000*1000*5 |
