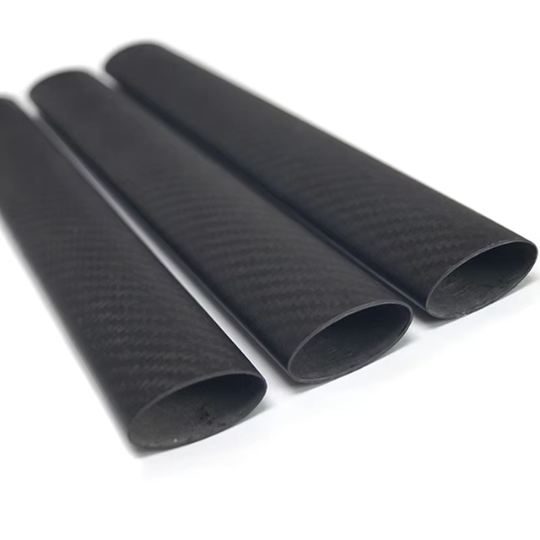

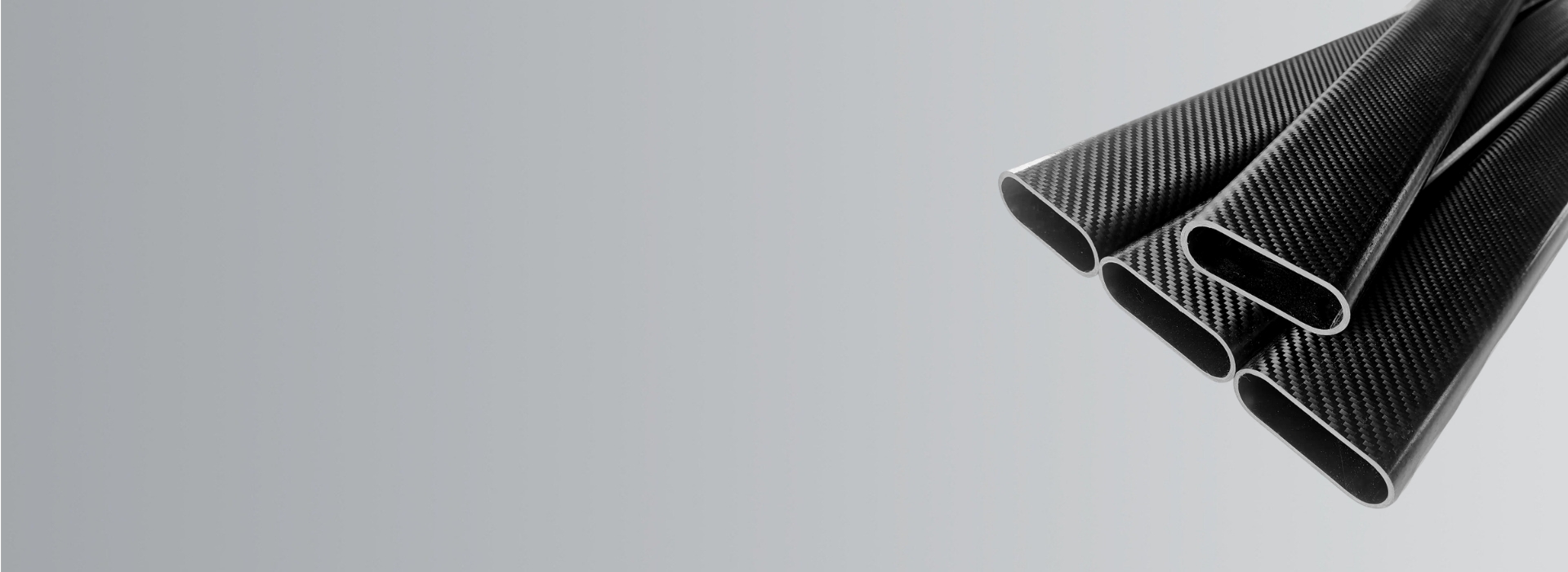

Oval Carbon Fiber Tube

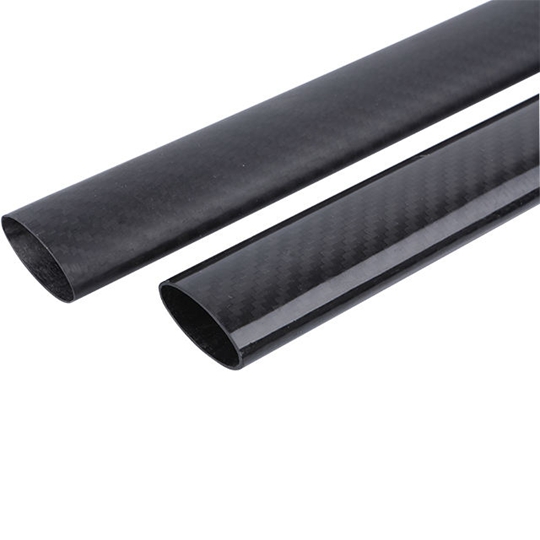

We can produce carbon fiber oval tubes using molding and roll wrapping processes. We currently have some roll wrapping molds available, including flat oval and wide oval molds, which can help you save mold production time and costs.
Material: Carbon Fiber Prepreg
Fiber Model: T300/T700/T800/M40/M40J
Production Method: Compression & Roll-Wrapped Processes
Size: 5mm to 300mm
Thickness: Custom Size
Length: Up to 3000mm
Surface: 3K Twill/Plain in Glossy/Matte, UD OPP
Your Leading Carbon Fiber Oval Tube Manufacturer

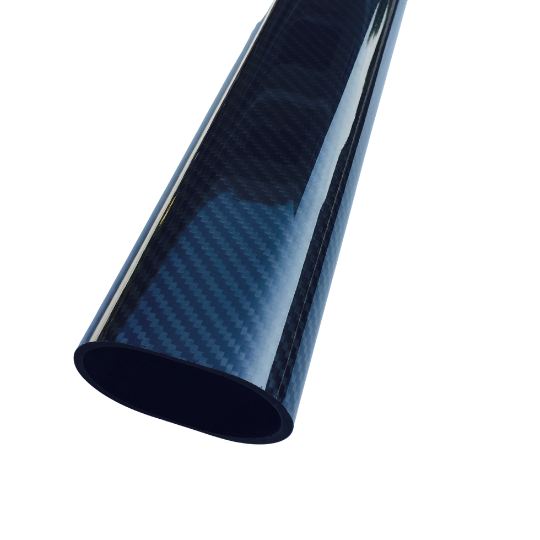

Oval carbon fiber tubes offer excellent properties such as lightweight, high modulus, and corrosion resistance. Their unique cross-sectional shape is not only aesthetically pleasing but also addresses specific challenges in high-end engineering applications where round or square tubes cannot simultaneously meet certain requirements
—solving issues related to directional stress and fluid dynamics.
We can design the layup according to your requirements, using 0.006″ and 0.008″ thickness UD prepreg. The innermost layer is oriented at 0° to enhance tensile strength, +/-45° layers increase torsional resistance, and 90° layers improve hoop strength for better resistance to external and internal pressure.
Features and Applications for Carbon Fiber Oval Tubing
Compared to round carbon fiber tubes, elliptical carbon fiber tubes offer better stability and can withstand greater torsional forces, providing unique advantages in practical applications. Production using a roll-to-roll process results in lower mold costs and unit prices, while increasing production efficiency. The UD OPP finish, with its resin-retained surface, prevents carbon fiber fraying and maintains a glossy finish, reducing the need for sanding and painting processes and further lowering costs.
-
Umbrella Parasol RibsStable and withstand torsional forces
Using oval ribs prevents three-dimensional deflection caused by wind, keeping the opening and closing direction of the umbrella consistent.
-
Bicycle AccessoriesDrag reduction and flow guidance
Designing carbon racing frame tubes or bicycle rims into an elliptical shape can significantly reduce the drag coefficient.
-
Folding Drone ArmsConnectivity and Avoidance in Complex Spatial Structures
Carbon fiber folding drone arms prevent accidental rotation due to motor torque after deployment.
-

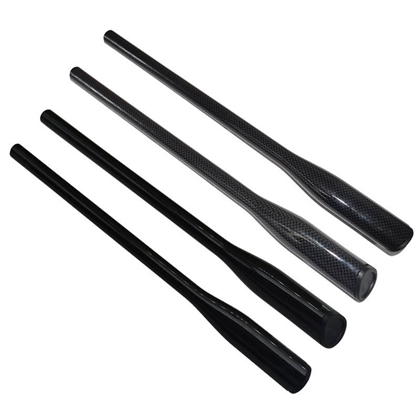

Fishing Rods HandleDirectional Bending Stiffness
Applying the CFRP oval tube to high-performance fishing rods, offers two benefits: prevents accidental slippage and allows the rod to bend easily in one plane while remaining rigid in another.
-
Carbon fiber badminton racketErgonomics and Grip Comfort
Making the handles of high-end carbon fiber badminton rackets, tennis rackets, and carbon fiber trekking poles oval-shaped provides a comfortable grip for long periods, reducing fatigue and slipping.
Mandrel Sizes
These are the sizes of the mandrels for oval tubes, which is equivalent to the inner wall size of oval carbon tube. Other sizes and lengths can be customized according to customer requirements.

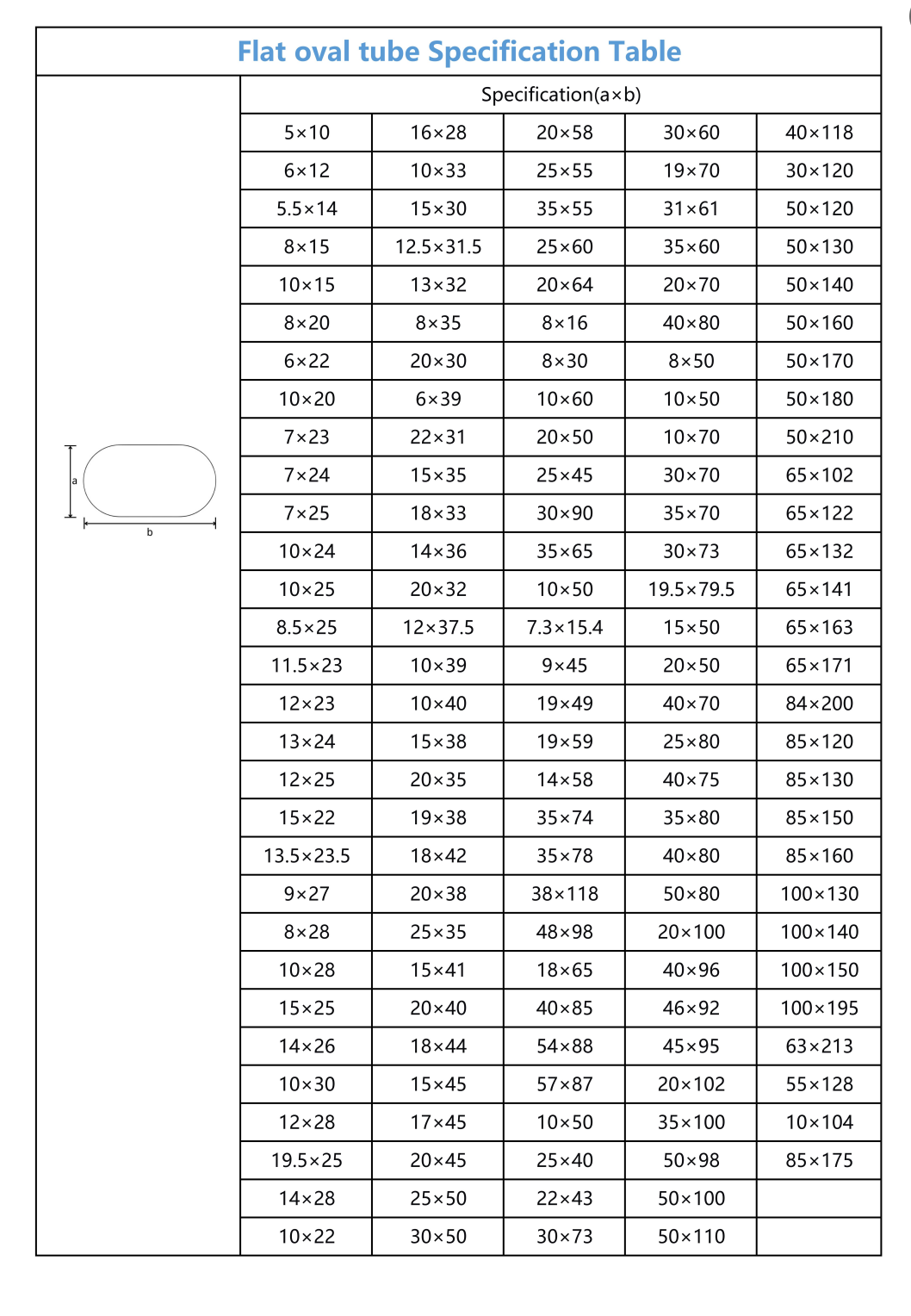

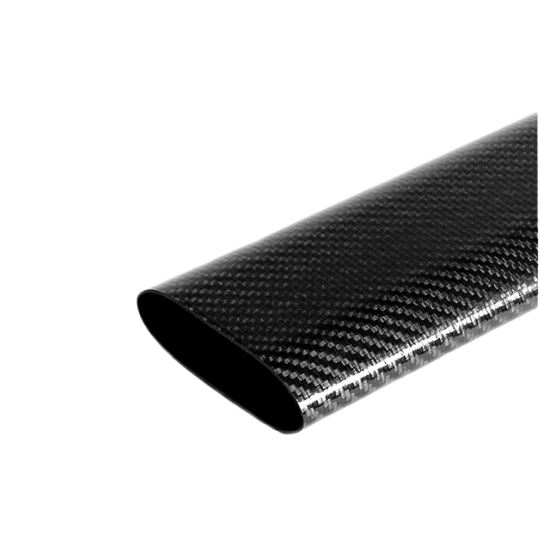

- Flat Oval Tube Specification Table

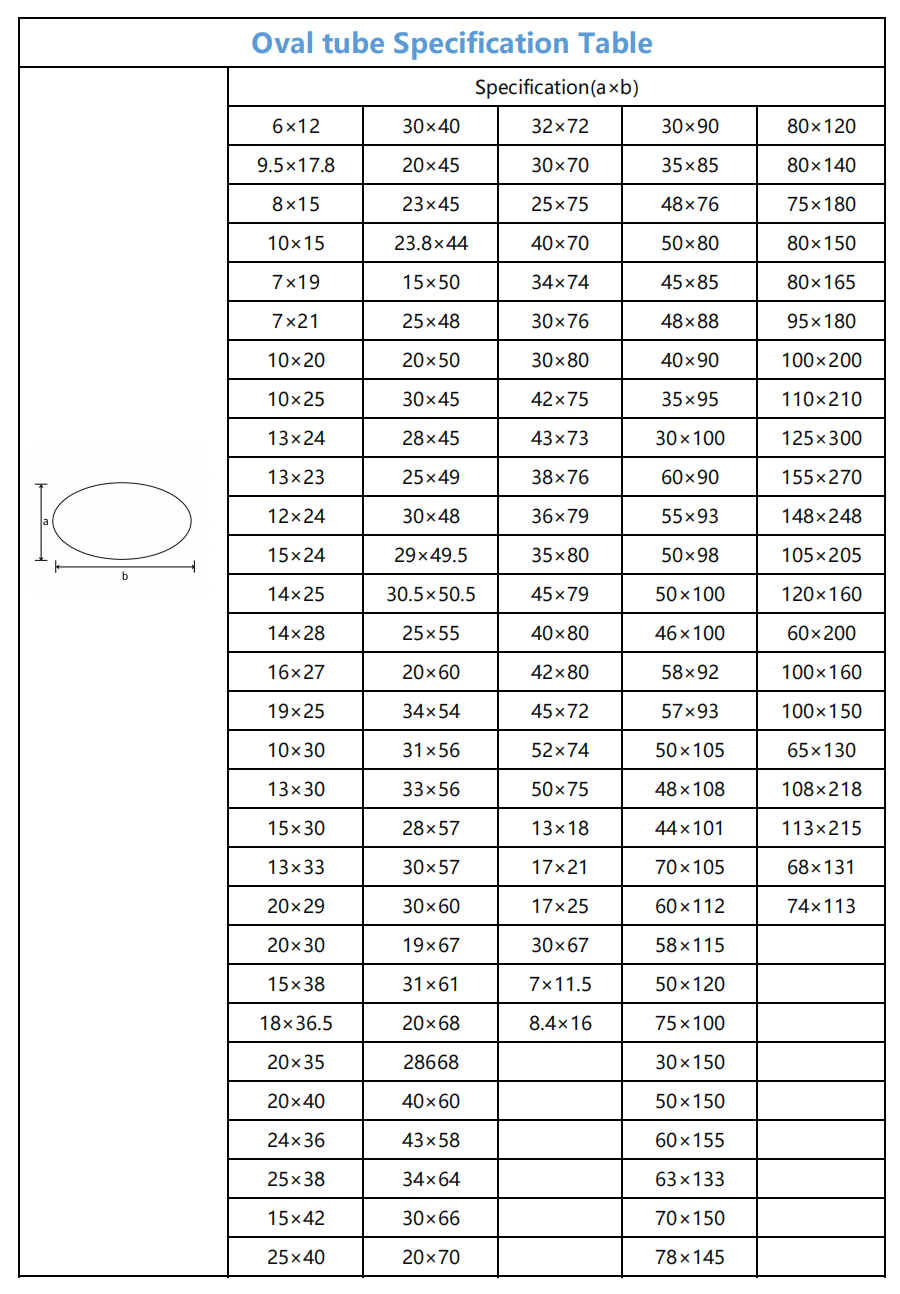

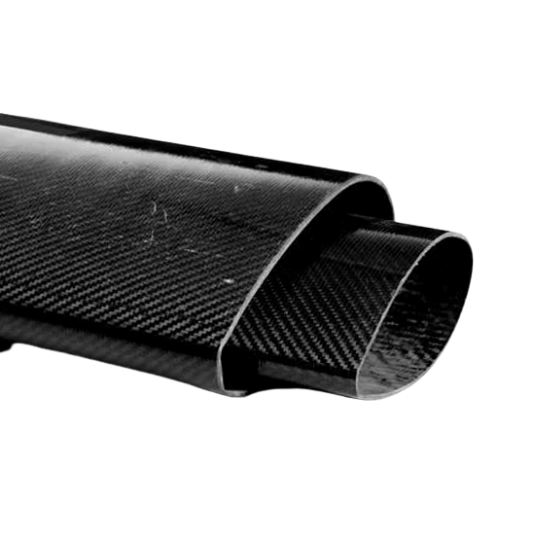

- Oval Tube Specification Table
- Date Sheet for Carbon Oval Tubes
| Width | ~4″ |
| Height | ~4″ |
| Length | Up to 118″ |
| Wall Thickness | 0.04″~ 0.2″ |
| Shape | Oval |
| Tube Finish | Cello-Wrap, clear coating(matte/glossy) |
| Ply Orientation | 0/90°/±45° |
| Max Temperature | 140F |
| Fiber Modulus | Standard (33 Msi) |
