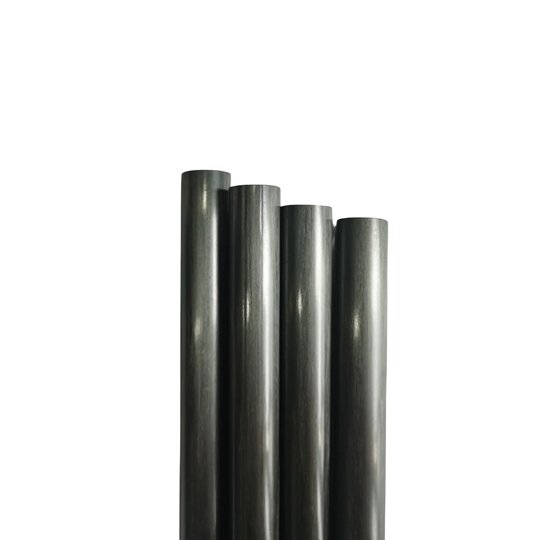

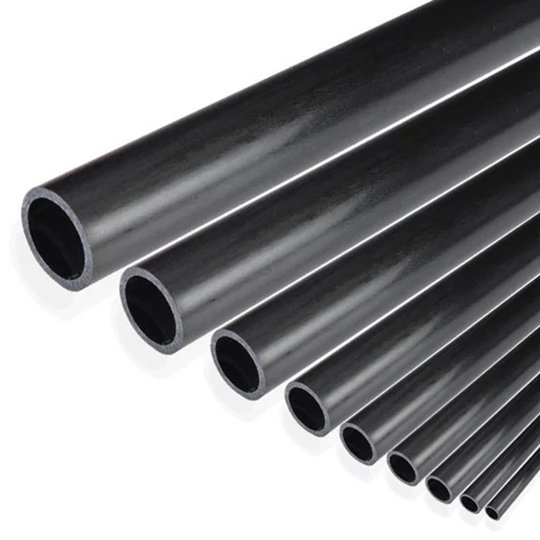

Pultruded Carbon Fiber Tube
We have accumulated hundreds of mold dies in stock for different sizes and sections of pultruded carbon tubes, please contact us to get a free quotation now.
Material: 60-65% Carbon Fiber + 35-40% Epoxy Resin
Color: Natural, Black or Custom Color

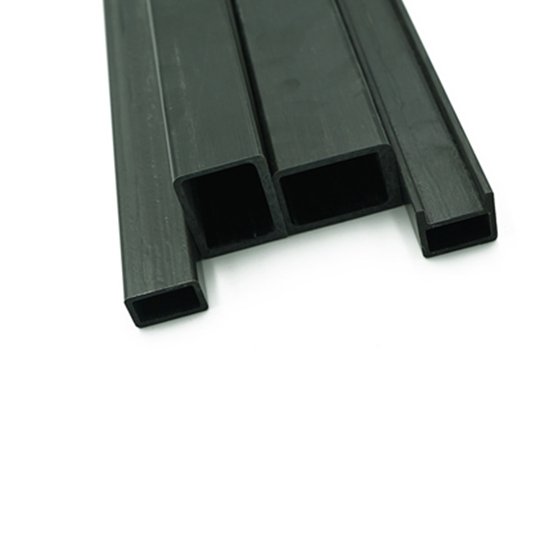

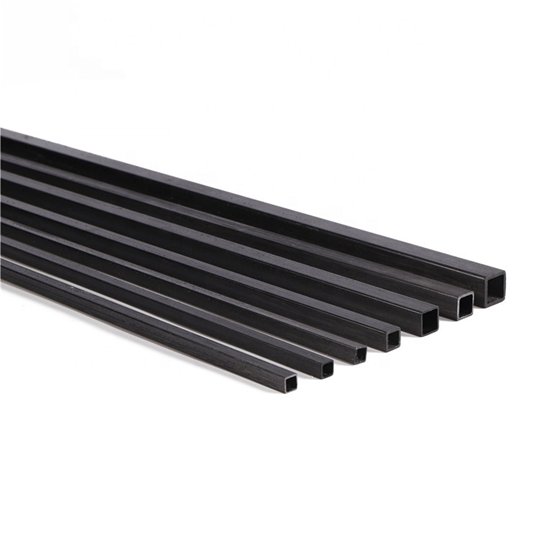

Shape: Round, Square, Oval, Strip, U Channel or Custom shapes
Finish: Matte or 3K Twill/Plain Pattern
Straightness: 0.5~1.5mm for 1meter length
Composite Type: 0° Unidirectional Orientation
Fiber Type: 33 to 35 MSI Standard Modulus
Advantage of Pultruded Carbon Fiber Tube
Compared with the roll wrapped carbon fiber tube production process, the pultrusion process has three obvious advantages: the use of carbon fiber filaments, eliminating the need for braiding and pre-impregnation steps; by the high automation production equipment with low manual involvement, we can get the precision ID and OD tubes; and because all the unidirectional fibers are aligned lengthways in a zero-degree direction, the tubes has a high tensile strength and high modulus in longitudinal direction.
Your #1 Pultruded Carbon Fiber Tube Manufacturer
In order to improve the relatively weak torsional strength of pultruded carbon fiber tubes，Our pultruded tubes use high modulus carbon fiber tows, the tubes have high straightness, accurate inner and outer diameter dimensions, and uniform resin and fiber distribution under strict production control, which makes them ideal for the production of fishing rods, kite frames, arrow shafts, and tent poles in the field of high-performance sporting goods.
Part of Standard Pultruded Tube Sizes
|
OD(mm) |
ID(mm) | WEIGHT(gram/m) |
|
6 |
4 |
24 |
| 8 | 6 |
33 |
|
10 |
8 | 42 |
| 15 | 13 |
66 |
| 20 | 18 | 89 |
|
22 |
20 | 99 |
| 25 | 23 |
113 |
|
30 |
26 | 127 |
| 40 | 38 |
184 |
|
50 |
48 | 230 |
|
Maximum Length: 4000mm ; Maximum OD: 300mm |
||
|
Accept OEM customization |
||
